CONSTRUCTION OF LIGHT FIXTURE AND NICHE
FIXTURE HOUSING:
All cast bronze body with machined face. Stainless Steel fitted.
NICHE:

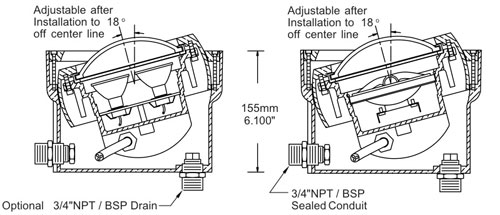

All cast bronze construction with machined joints. Vertical installed niches
must have bottom drain in freezing climates.
SEALED CONDUIT ENTRY INTO NICHE: Standard
3/4in. NPT/BSP Conduit entry in side or bottom.
ANCHOR PLATE:
Optional anchor plate (-B22) is available for mounting on to concrete surfaces.
LAMP HOLDER:
C131-1: Spring Ring for PAR36 or AR111 Lamps with Fork Connectors
C131-3: Mounting Plate with 3x Bi Pin Socket GX5.3 for MR16
Lamps with Aluminized Reflectors
C131-5: Mounting Plate with 3x GZ10 Bi Pin Socket for GU10
Lamps
LENS: 143mm / 5.625in. diameter - Cast boron silicate glass, tempered
STANDARD: CONVEX LENS, Clear or Five (5) Colors
OPTIONAL: FLAT CLEAR LENS
OPTIONAL: FLAT DICHRO COLOR LENS - Choice of Ten (10) Colors
OPTIONAL: (14-9) FLAT, CLEAR, ARMORED LENS 15mm thickness,
Replaces rockguard in certain applications.
LENS GASKET: High Temperature Silicone Rubber, Single U shaped gasket with unique safety sealing lips and contours.
TILE MASK: OPTIONAL
ELECTRICAL CABLE: Approved for the purpose with integral epoxy encapsulated, compression type cable entry in factory assembled fixtures.
