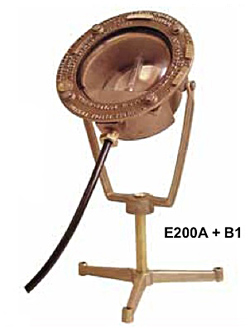

Low profile submersible lightfixture with internal polished stainless steel parabolic reflector
providing a vertical rectangular light output along the axis to the lamp base with maximum light
concentration on center of solitary vertical spray effects. By using the stand assembly B8 the
axis of the lightfixture can be rotated by 90 degrees providing a rectangular horizontal light
output for spray rings or waterfalls.
LAMP, Quartz Halogen - OPTIONAL
T4-MC: 120v / 240v max 250w, Mini Candelabra E11 base
JC: 12v or 24v 6.35-1.0 base, max 100w at 12v and 150w at 24v
FIXTURE HOUSING: Cast Bronze. Stainless Steel fitted
FACEPLATE for flush into concrete surface installation within grout frame. Bronze Casting with natural finish. Stainless Steel fitted
REFLECTOR: Corrosion and heat resistant Stainless Steel highly polished parabolic surface beneath lamp and protective shielding over electrical components.
LAMP HOLDER:
T4-MC: 120V / 240V fixtures: Ceramic, mini-candelabra screw
base, E11.
JC : G6.35-1.0, 2 Pin base.
-36: Fork terminals for screw connection of lamps.
LENS: 143mm / 5.625" Diameter.
STANDARD: Convex cast glass, heat resistant and tempered. Clear or 5 colors.
OPTIONAL: Convex Dichro Colour Lens, in 10 colours
OPTIONAL: Lens Shade for Dichro Colour Lens
LENS GASKET: High Temperature Silicone Rubber, Single U shaped gasket with unique safety sealing lips and contours.
ELECTRICAL CABLE: Approved for the purpose with integral epoxy encapsulated, compression type cable entry in factory assembled fixtures.
THERMAL CUT OFF: Optional: For 120V & 240V fixtures
only
MOUNTING OPTIONS: Optional
CANDLE POWER
Measured in open air 6.56 feet from clear lens without rockguard!
 |
 |
