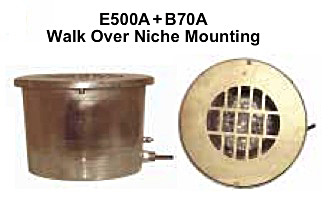

PEM E500 Submersible Light Fixture
 |  |
LAMP, Quartz Halogen - OPTIONAL
120V & 240V, PAR56 Sealed Beam Lamps, Base (GX16d).
120V - 300W & 500W & 240V - 300W. 240V - 500W by PEM.
12V & 24V, PAR56 Sealed Beam Lamps, Screw Connections.
24V - 250W by PEM, 12V - 120W, 240W & 300W.
HOUSING & FACERING:
Cast bronze (85/5/5/5 Copper Alloy) Stainless Steel fitted.
Facering has cast in tightening torque specification for facering bolts.
LAMP CONNECTOR:
120V / 240V: Ceramic Mogul PAR connector GX 16d (flat pins) with high temperature leads and (3) holding clamps.
12V & 24V: Fork Connectors and (3) holding clamps.
LENS: 213mm / 8.375" Diameter.
STANDARD: Convex cast glass, heat resistant and tempered. Clear
or 5 colors.
OPTIONAL: Convex Dichro Colour Lens, in 10 colours
OPTIONAL: Lens Shade for Dichro Colour Lens
LENS GASKET: Custom molded U shape made of material approved for the application.
THERMAL CUT OFF: OPTIONAL Factory installed integral thermal
cut off for 240V, 120V, 24V & 12V.
ROCKGUARD: OPTIONAL.

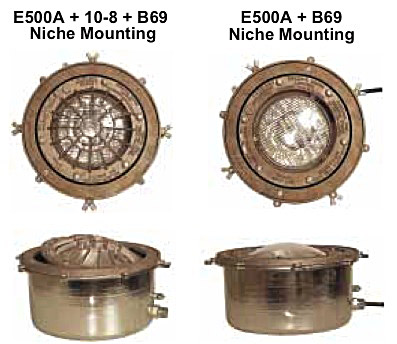

LENSGUARD, PART OF FACERING: OPTIONAL. Must be used with vertical mounted Niche B69. Optional for all others.
STAND OR MOUNTING ASSEMBLY: OPTIONAL
