PEM E1100 Submersible Light Fixture
 |
 |
PAR 64 Lamps,1000W - 120V & 1KW - 240V
1 Kilowatt.
Yes, you read that right.
LAMPS: OPTIONAL
PAR 64, max. 120V & 240V, 1000W, Sealed Beam Lamps, Base (GX16d)
HOUSING & FACERING:
Cast bronze (85/5/5/5 Copper Alloy). Stainless Steel fitted.
Facering has cast in tightening torque specification for facering bolts.
LAMP CONNECTOR & HOLDER :
120V / 240V : Ceramic, Mogul PAR connector GX 16d (flat pins) with high temperature
leads.
LAMP LOCATOR CLIPS: Lamp is held by (3) spacing clips under lens gasket
LENS: 213mm / 8.375" diameter. See page 310 .
STANDARD: Convex clear or in 5 colors.
OPTIONAL:
CONVEX DICHRO COLOR LENS, Choice of 10 colors.

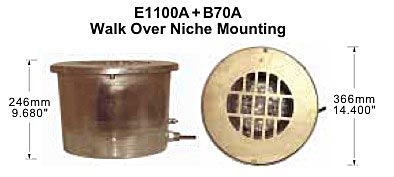

ADAPTER -0904 required for Flat Lens. Not for use with niche
B70A.
Cast bronze. Stainless Steel fitted with silicon rubber gasket.
Requires stand assembly B4A to carry added weight.

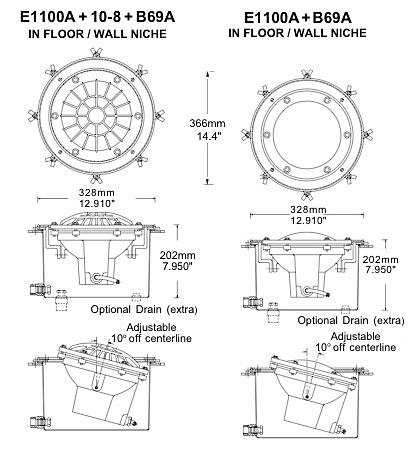

Increases installation height of B 69A niche mountings.
FLAT CLEAR LENS. FLAT DICHRO COLOR LENS, Choice of 10 colors.
DICHROIC LENS SHADE: -0-5 Required for clean (color) illumination.
LENS & LENS ADAPTER GASKETS: Custom molded U shaped made of high temperature silicone rubber.
CABLE: Approved for the purpose electrical cable with epoxy encapsulated compression type cable entry into housing.
THERMAL CUT - OFF: OPTIONAL. Factory installed integral thermal cut off for 120V
ROCKGUARD: OPTIONAL.
LENSGUARD, PART OF FACERING: OPTIONAL. Must be used if required with Niche B69A. Optional for all others.
STAND OR MOUNTING ASSEMBLY: OPTIONAL.
